3-7: Cell Information
3-7-2: Cell Graphing
plug


Cell graphing shows the hierarchical structure of your circuit. The graph is stored in a new cell called "CellStructure", built from Artwork nodes.

The Cell Graph, Entire Library command (in menu Cell / Cell Info) displays a graph of every cell in the library. The Cell Graph, From Current Cell command displays a graph that places the current cell at the top.

A cell graph can be edited like anything else in Electric. Click and drag the cell names to rearrange the graph.

Electric can also construct a graph of library dependencies with the Library Graph command.

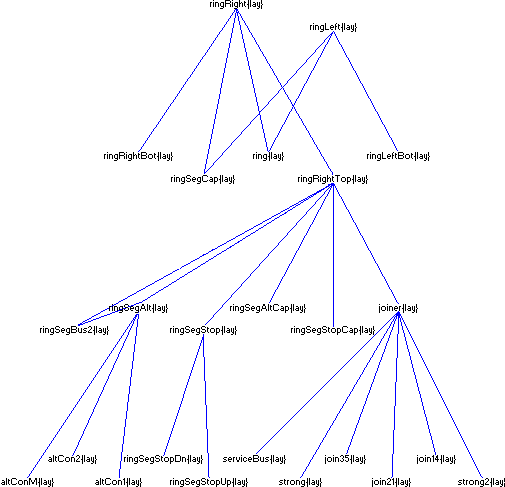

Figure 3.20
