Chapter 6: Advanced Editing
plug
6-13: CVS Project Management
plug


Electric implements an interface to the Concurrent Versioning System (CVS) program, a popular version control system. This section assumes the user is familiar with how CVS works, and the various CVS commands. Such information is readily available on the web.

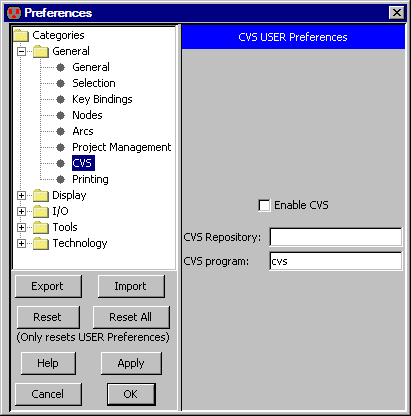

To enable Electric to use CVS, you must first configure the CVS Preferences (in File / Preferences..., "General" section, "CVS" tab). CVS must be enabled, and the repository location must be specified. Electric does not implement the CVS protocol, it merely provides an interface to interact with an external CVS program, so that program must be specified in the preferences.
Figure 6.27

The Electric GUI allows the user to perform the common CVS commands via the menu File / CVS, or via the popup-context menu on the libraries and cells listed in the explorer tree. The menu commands apply to all libraries; the explorer-tree context menus apply only to the selected library.

With CVS enabled in Electric, the explorer tree uses colors to show the state of libraries or cells in CVS. When using a JELIB or ELIB library format, the library name and all cells are the same color, because the entire library is a single file. When using a DELIB format, the cells are different color, because each cell is its own file. The colors and their associated state are shown below. Colors at the top of the table will be displayed before colors at the bottom of the table, if two states are simultaneously valid.

StateColor
Conflicts with CVS versionRed
Locally ModifiedBlue
Needs UpdateMagenta
Added/RemovedGreen
Unknown (not in CVS)Light gray
Up-to-dateBlack

These are the commands implemented by Electric:
